Universal Oil Filter Cooler Sandwich Gauge Sensor Plate Adapter Chrome

Universal Oil Filter Cooler Sandwich Gauge Sensor Plate Adapter Chrome

  • 100% Brand New Items, Never Used Or Installed
  • Universal Aluminum Oil Filter / Cooler Relocation Adapter Plate

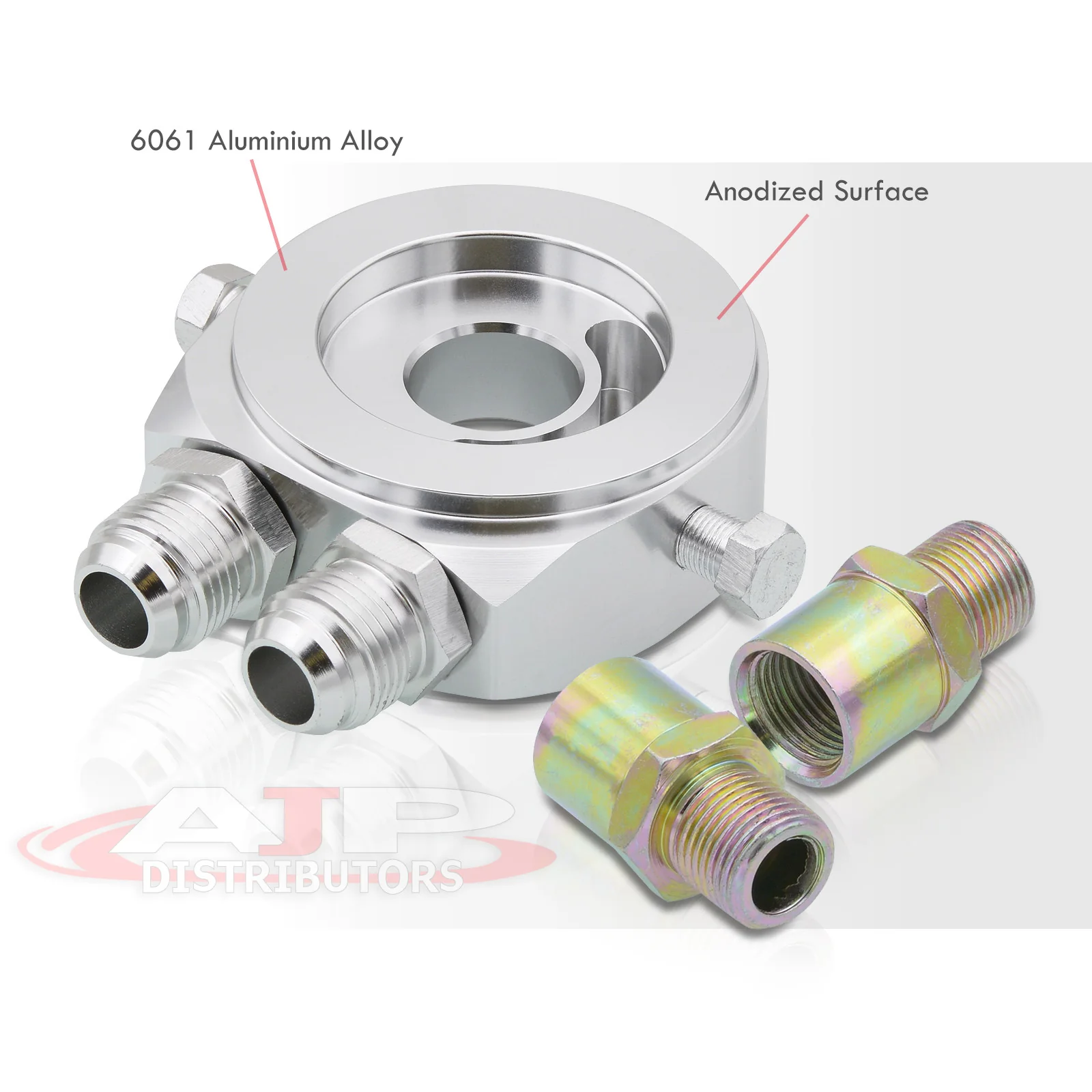

  • CNC Machined From AL6061-T6 Billet Aluminum With An Anodized Finish
  • Mounts Between The Block and Oil Filter; Provides In and Out Ports With Connections For 10AN Fittings
  • O-Rings: 2 3/4", Supporting Many Different Types Of Oil Filters and Engine Blocks
  • Center Adapter: M20 x 1.5 and 3/4 x 16 UNF Thread; Supports Oil Filters That Has M20 Thread and M20 Block Fitting
  • 10 AN Ports: Running Oil For Turbo / Oil Cooling
  • 1/8 NPT Ports: Running Sensors For Gauges, Sensors, Or Other Accessories

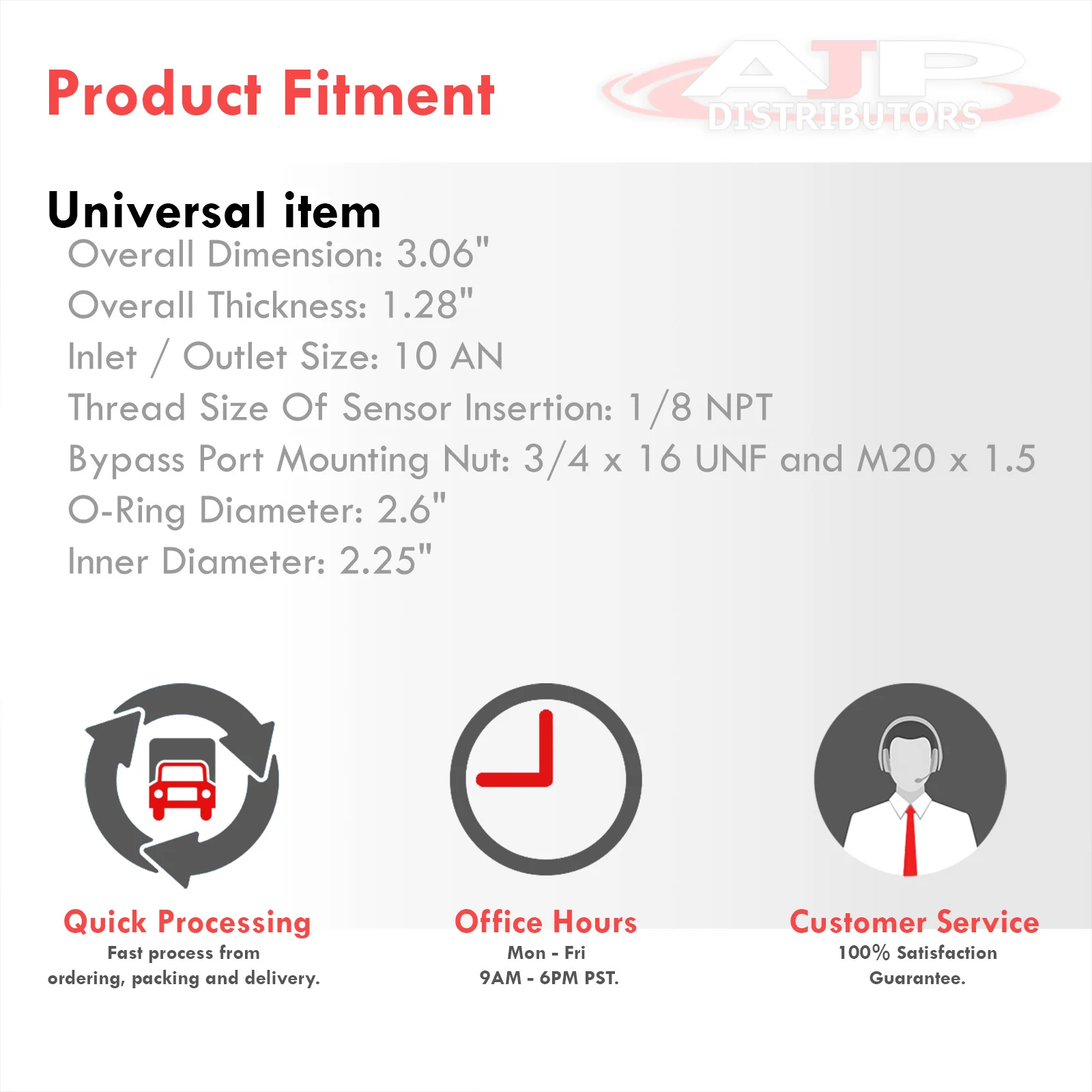

  • Overall Dimension: 3.06"
  • Overall Thickness: 1.28"
  • Inlet / Outlet Size: 10 AN
  • Thread Size Of Sensor Insertion: 1/8 NPT
  • Bypass Port Mounting Nut: 3/4 x 16 UNF and M20 x 1.5
  • O-Ring Diameter: 2.6"
  • Inner Diameter: 2.25"
  • Package Includes: 1x Oil Filter Sandwich Adapter | 1x M20 x 1.5 | 1x 3/4 x 16 UNF | 2x 10AN Fitting | 2x 1/8 NPT Plug
  • No Installation Guides Are Included, We Highly Recommend To Seek Professional Installation

    • FITMENT

  • Universal - M20 x 1.5 and 3/4-16 UNF Threading Engine Blocks and Oil Filters Only
  • (Made For Most Japanese Vehicles - Please Check Your Vehicle's Application)
    • $22.99
    Universal Oil Filter Cooler Sandwich Gauge Sensor Plate Adapter Chrome—
    $22.99

    Product Information

    Shipping & Returns

    Description

  • 100% Brand New Items, Never Used Or Installed
  • Universal Aluminum Oil Filter / Cooler Relocation Adapter Plate
  • CNC Machined From AL6061-T6 Billet Aluminum With An Anodized Finish
  • Mounts Between The Block and Oil Filter; Provides In and Out Ports With Connections For 10AN Fittings
  • O-Rings: 2 3/4", Supporting Many Different Types Of Oil Filters and Engine Blocks
  • Center Adapter: M20 x 1.5 and 3/4 x 16 UNF Thread; Supports Oil Filters That Has M20 Thread and M20 Block Fitting
  • 10 AN Ports: Running Oil For Turbo / Oil Cooling
  • 1/8 NPT Ports: Running Sensors For Gauges, Sensors, Or Other Accessories
  • Overall Dimension: 3.06"
  • Overall Thickness: 1.28"
  • Inlet / Outlet Size: 10 AN
  • Thread Size Of Sensor Insertion: 1/8 NPT
  • Bypass Port Mounting Nut: 3/4 x 16 UNF and M20 x 1.5
  • O-Ring Diameter: 2.6"
  • Inner Diameter: 2.25"
  • Package Includes: 1x Oil Filter Sandwich Adapter | 1x M20 x 1.5 | 1x 3/4 x 16 UNF | 2x 10AN Fitting | 2x 1/8 NPT Plug
  • No Installation Guides Are Included, We Highly Recommend To Seek Professional Installation

    • FITMENT

  • Universal - M20 x 1.5 and 3/4-16 UNF Threading Engine Blocks and Oil Filters Only
  • (Made For Most Japanese Vehicles - Please Check Your Vehicle's Application)
